| Introduction |

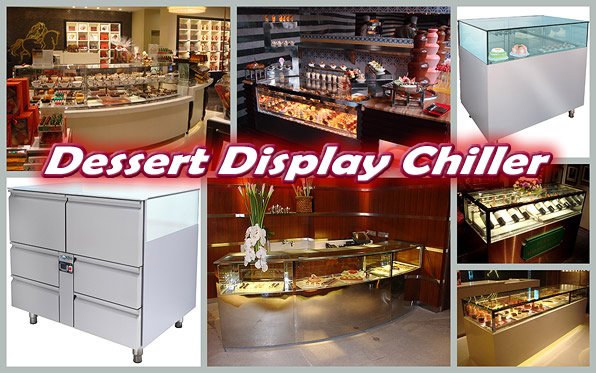

The chiller with tempered glass panels on top and 2 back drawers are made perfect for cakes, chocolate and sushi display. Temperature ranges between +4°C and +16°C to keep the products fresh. Integrated type and remote type of condensing unit are available for different decor design. Additional 4 general drawers (in ambient temperature) are equipped in remote type model for more storing space. |
| Standard Features | |
Refrigeration System: |
Forced Air; Uniquely designed to have cold air floating beneath each drawer with very little air movement, therefore extending shelf life without drying out the product. Reliable self contained, bottom mounted, system, designed for tropical climate and easy servicing, using environment friendly R-134a as refrigerant. Drainage connection is not necessary, as the system uses condensate evaporator. |
Controller: |
Microprocessor controlled with digital temperature display to monitor cabinet temperature. |
Voltage: |
Standard 220v/1ph/50Hz (60Hz available upon request) |
SPECIFICATION |
||||
Dessert Display Chiller - Drawer Type, voltage: 220v/1ph/50Hz |
||||
Model: |
Self-contained |
Remote-type |
||
DDC-1200S |
DDC-1500S |
DDC-1200R |
DDC-1500R |
|
Dimension (WxDxH) mm |
1200x700x1150 |
1500x700x1150 |
1200x700x1150 |
1500x700x1150 |
Temperature (°C) |
+4 ~ +16 |
|||
Compressor (HP) |
3/8 |
1/2 |
3/8 |
1/2 |
Drawer (Qty) |
2 top units (+4 ~ +16°C) |
2 top units (+4 ~ +16°C) |
||
*2 units underneath (in ambient temperature) |
*4 units underneath (in ambient temperature) |
|||
Refrigerant |
R134A |
|||
Electricity (Kw) |
1.0 |
1.2 |
1.2 |
1.2 |
